Description

Microsidd Microtouch

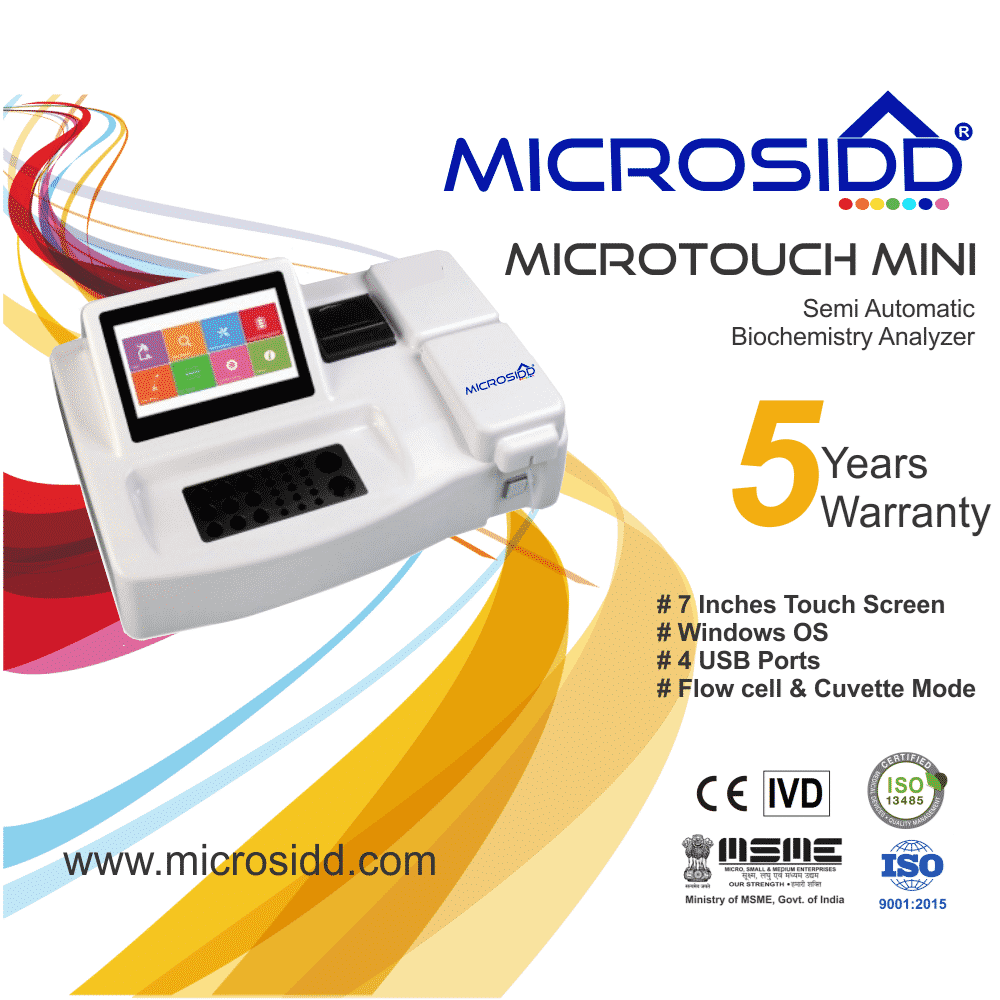

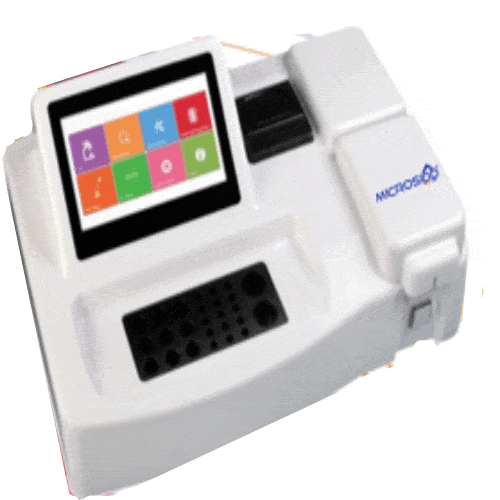

Touch Screen Semi Automatic Biochemistry Analyzer

Price Inclusive GST and transportation

5year Onsite Warranty

4 USB ports & 1 ethernet port

Computer System Data Enabled

300 programs , 20000 test result storage

1point end, 2 point end(Sample blank), Kinetics, Fixed-
time, Coagulation

7 inches true color touch screen 800*480 pixels

Full Specifications

Test Method : 1point end, 2 point end(Sample blank), Kinetics, Fixed-

time, Coagulation

Optics : 7 standard filters:340nm, 405nm, 450nm, 505nm, 546nm,

578nm,630nm.2 more for optional.

Lamp house : Long-life tungsten halogen lamp (6v/10w), auto-sleep

function.

Display : 7.0 TFT LCD with touch screen, 800 * 480 pixels.

Printer : Build-in the thermal printer, 57mm, printer paper.

Temperature : 25, 30, 37 and Room tempature. By means of peltier

elements.

flowcell capacity & optical path : 18ul, 10mm

Resolution : 0.0001Abs

Photometric range : 0.0000-4.0000 Abs

CPU : ARM Cortex-A8, 720M Hz.

Memory : DDR2 SDRAM : 1G bit

Flash : 256 MB;

Over 300 Programs, 200000 results can be stored.

Interface : 4USB Hosts, 1USB Slave, 1Ethernet port.

USB port (host) for keyboard, Mouse, Printer, U Disk, Barcode Reader etc.

USB Port (slave) for PC Connection(support PC Software control function).

Operational environment : Temparature : 10~30, Humaidity : 30% ~ 80%.

power requirement : wide power supply AC 100-240V , 50/60Hz.

Dimension : 400*300*160mm(L*W*H)
